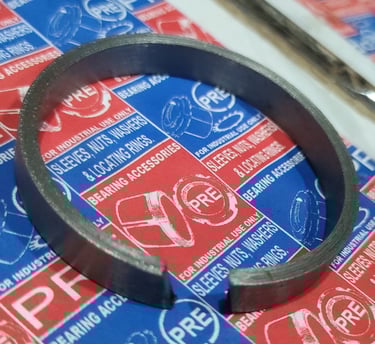

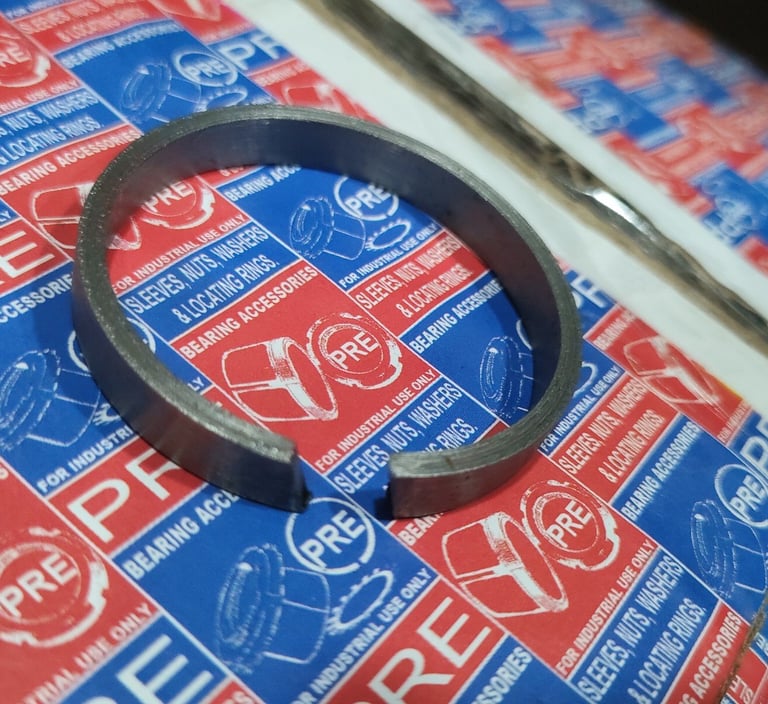

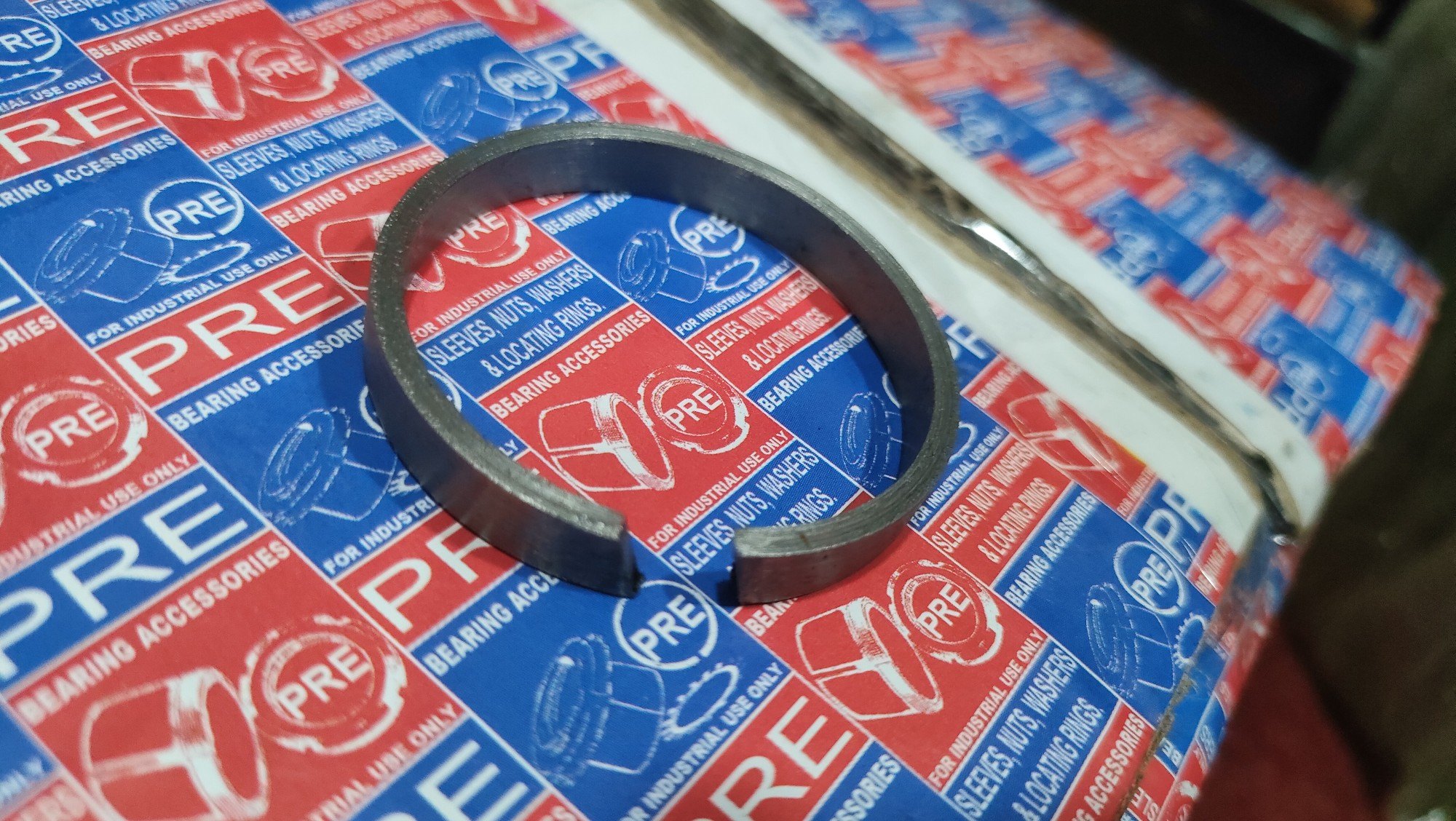

LOCATING RINGS

Locating rings in plummer blocks offer several key advantages that contribute to the efficiency and longevity of machinery. Here's a brief overview:

• Precise Axial Positioning:

  • The most significant advantage is the ability to accurately position the shaft axially. This prevents unwanted movement, ensuring that components operate within their designed tolerances.

  • This precision is critical for maintaining alignment and preventing premature wear.

• Enhanced Bearing Support:

  • By securing the bearing in a fixed axial position, locating rings provide enhanced support, reducing the risk of bearing damage due to axial loads.

  • This leads to increased bearing lifespan and reduced maintenance requirements.

• Improved Machine Stability:

  • Controlled axial positioning contributes to overall machine stability. This is particularly important in high-speed or high-load applications where vibrations and imbalances can cause significant problems.

  • By controling the shaft movements, the machine runs smoother.

• Reduced Wear and Tear:

  • By minimizing axial movement, locating rings help to reduce wear and tear on bearings, shafts, and other connected components.

  • This results in less frequent replacements and lower operating costs.

• Simplified Assembly and Maintenance:

  • Locating rings provide a defined and repeatable method for positioning bearings, simplifying assembly and maintenance procedures.

  • This reduces downtime and improves overall efficiency.

• Facilitating Thermal Expansion Management:

  • While fixing one bearing, the use of locating rings enables the system to use other non-locating bearing positions. This allows for controlled thermal expansion of the shaft. This is a very important design consideration.

• Increased System reliability:

  • The use of locating rings, when applied correctly, increases the overall reliability of the system. This is due to the control of the shaft movement, and the reduction of unwanted forces on the bearings.

In essence, locating rings are essential for ensuring the accurate and reliable operation of plummer block systems, offering benefits in terms of precision, stability, and longevity.
