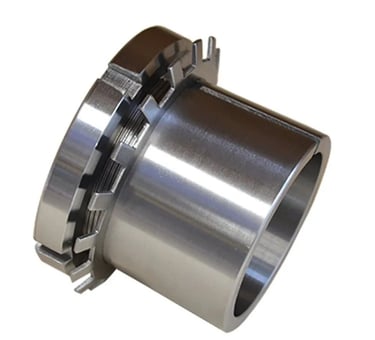

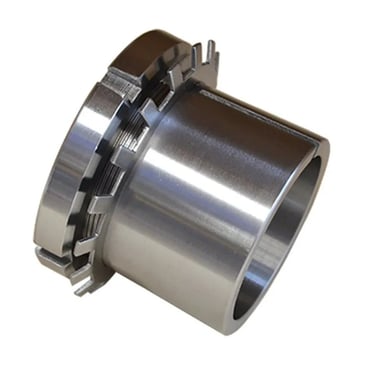

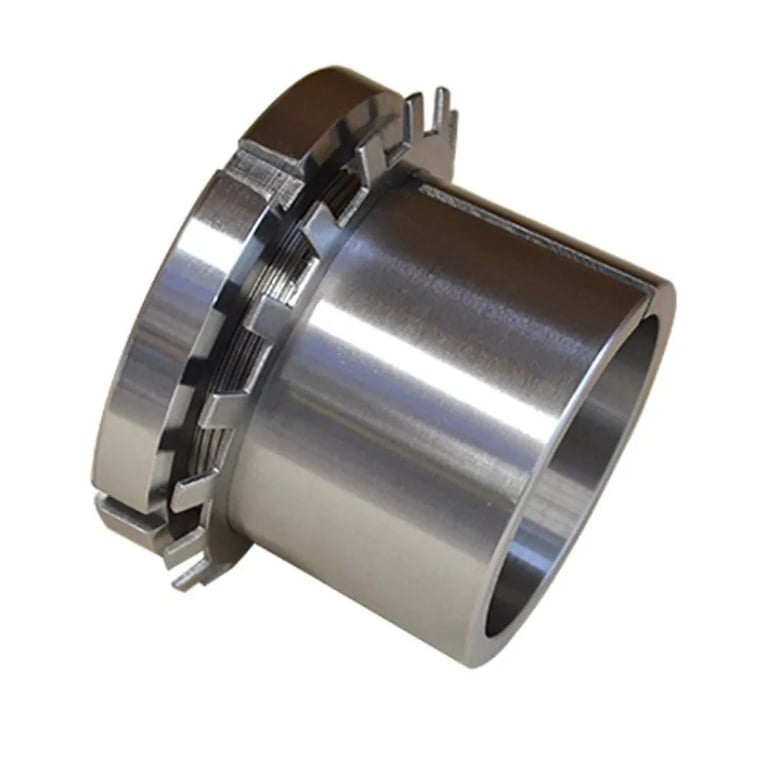

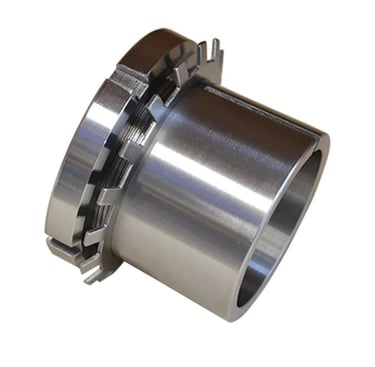

PRE ADAPTER SLEEVE

Standard PRE Adapter Sleeves are made from mild steel or any other durable metal. Taper of 1 : 12 is provided on the outside dia of the sleeve to match inside bore taper of the bearing. Inside dia of the sleeve is having cylindrical bore.

PRE Adapter Sleeves are supplied complete with Lock Nut & Lock Washer or Locking Clips.

This allows the bearing with tapered bare to locate on the cylindrical shaft without any additional location on any position of the shaft

PRE Adapter sleeve range - H , OH , HE 200, 300, 3000, 3100, 2300, 3200 etc & special customize sizes

• Standard PRE Adapter Sleeves: These are the most common type and are used for general bearing mounting applications where the bearing needs to be securely attached to a shaft. They typically feature a cylindrical shape with a locking mechanism to hold the bearing in place.

• Locking PRE Adapter Sleeves: These sleeves incorporate an additional locking mechanism, such as a nut or a set screw, which holds the bearing in place once it is installed. This type of sleeve is used when a more secure attachment is needed, especially in high-load or high-vibration applications.

• Hydraulic PRE Adapter Sleeves: In some cases, adapter sleeves may be used with hydraulic tools to help install or remove bearings. These are designed to provide a more controlled force for bearing installation, which can be useful when working with larger bearings or shafts with tight fits.

• Tapered PRE Adapter Sleeves: Some adapter sleeves are designed with a tapered shape to facilitate a more precise fit between the shaft and the bearing. This is especially useful when working with bearings that require a very specific mounting position
