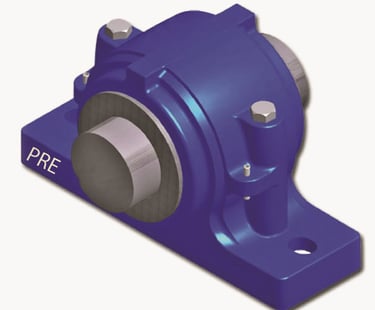

SNT SERIES PLUMMER BLOCK

SNT Housings are very heavy duty housings and made of cast steel. They are primarily designed for self aligning ball bearings and spherical roller bearings mounted either directly on shaft or on adapter sleeve.
Type:
SNT are split housings, the dimensions confirm to ISO-113. They are interchangeable with SNH housings because of similar overall dimensions, whenever there is heavy duty load application .The housings can be supplied with end cover for closed shaft application. Normally supplied for non locating bearing arrangement. However separate locating ring (FRB) can be ordered for locating bearing application. SNT..H housings are designed for grease lubrication. Recommended initial grease fill per each size is specified in the table. Suitable grease nipple provided in each housing.
Seals:
SNT housings are normally supplied with felt seal (TC),however they are suitable for double lip seal (TG),V ring seal (TA).labyrinth seal (TS).
Eye Bolt:
An eye bolt are provided for shaft size 110 and above.
Materials:
SNT housings are available only in cast steel material.
